Combinations

It is now time to introduce a way to combine shapes together, the main operations of constructive geometry, also known as the boolean operations.

We will play with two shapes, a box and a cylinder.

Pasting shapes together​

This is what we call the fuse operation:

const { drawRoundedRectangle, drawCircle } = replicad;
const main = () => {
  const cylinder = drawCircle(20).sketchOnPlane().extrude(50);
  const box = drawRoundedRectangle(60, 90).sketchOnPlane().extrude(25);

  return box.fuse(cylinder);
};

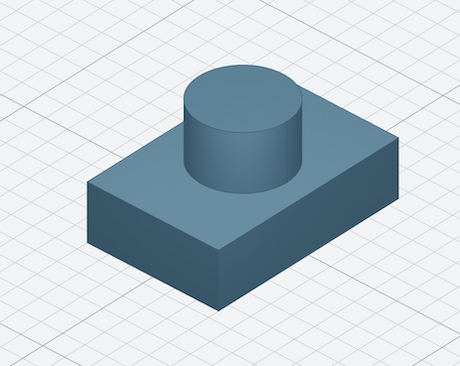

the box and cylinder fused

Cutting one shape with another​

This is what we call the cut operation:

const { drawRoundedRectangle, drawCircle } = replicad;
const main = () => {
  const cylinder = drawCircle(20).sketchOnPlane().extrude(50);
  const box = drawRoundedRectangle(60, 90).sketchOnPlane().extrude(25);

  return box.cut(cylinder);
};

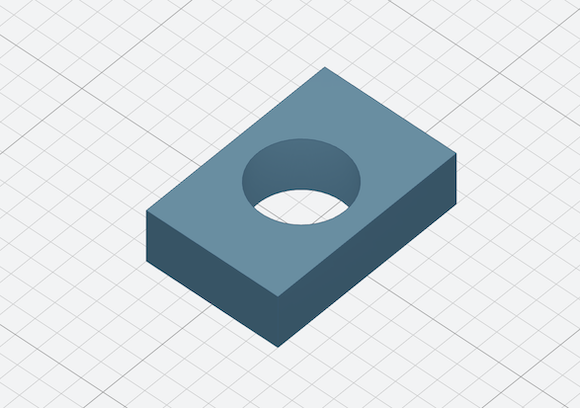

the cylinder cut into the box

Intersecting two shapes​

For the intersection we will intersect the cylinder with itself. This creates a fun shape:

const { drawRoundedRectangle, drawCircle } = replicad;
const main = () => {
  const cylinder = drawCircle(20).sketchOnPlane().extrude(50);
  const sideCylinder = cylinder.clone().rotate(90, [0, 0, 20], [1, 0, 0]);

  return sideCylinder.intersect(cylinder);
};

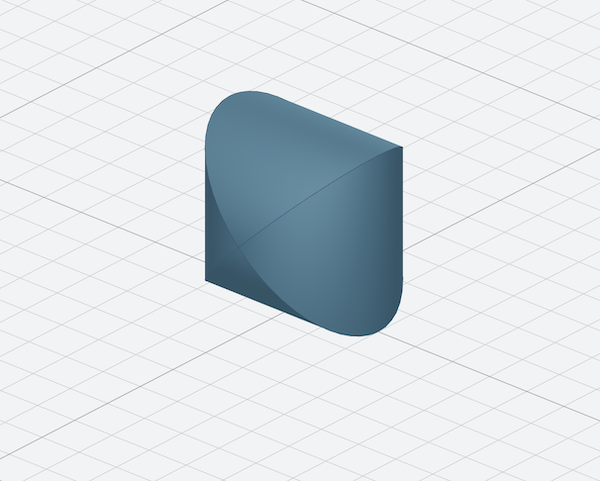

the cylinder intersecting itself
