Finders

When using a visual interface to draw in 3D, selecting a face or an edge is trivial - the user just needs to click it.

In the case of code CAD, this is a more complicated operation - we need to find these as features. This is what finders are for.

For this tutorial we will use this relatively complex shape (a simple house):

const { draw, drawCircle, drawRoundedRectangle } = replicad;
const main = () => {
  let house = draw()
    .hLine(50)
    .vLine(60)
    .line(-50, 20)
    .closeWithMirror()
    .sketchOnPlane("XZ")
    .extrude(30);

  const window = drawCircle(10)
    .sketchOnPlane("XZ")
    .extrude(30)
    .translate([10, 0, 50]);

  const door = drawRoundedRectangle(20, 30)
    .sketchOnPlane("XZ")
    .extrude(30)
    .translate([-20, -5, 15]);

  house = house.cut(window).fuse(door);
  return house;
};

We will use a feature of the viewer, where you can highlight programatically some faces (or edges).

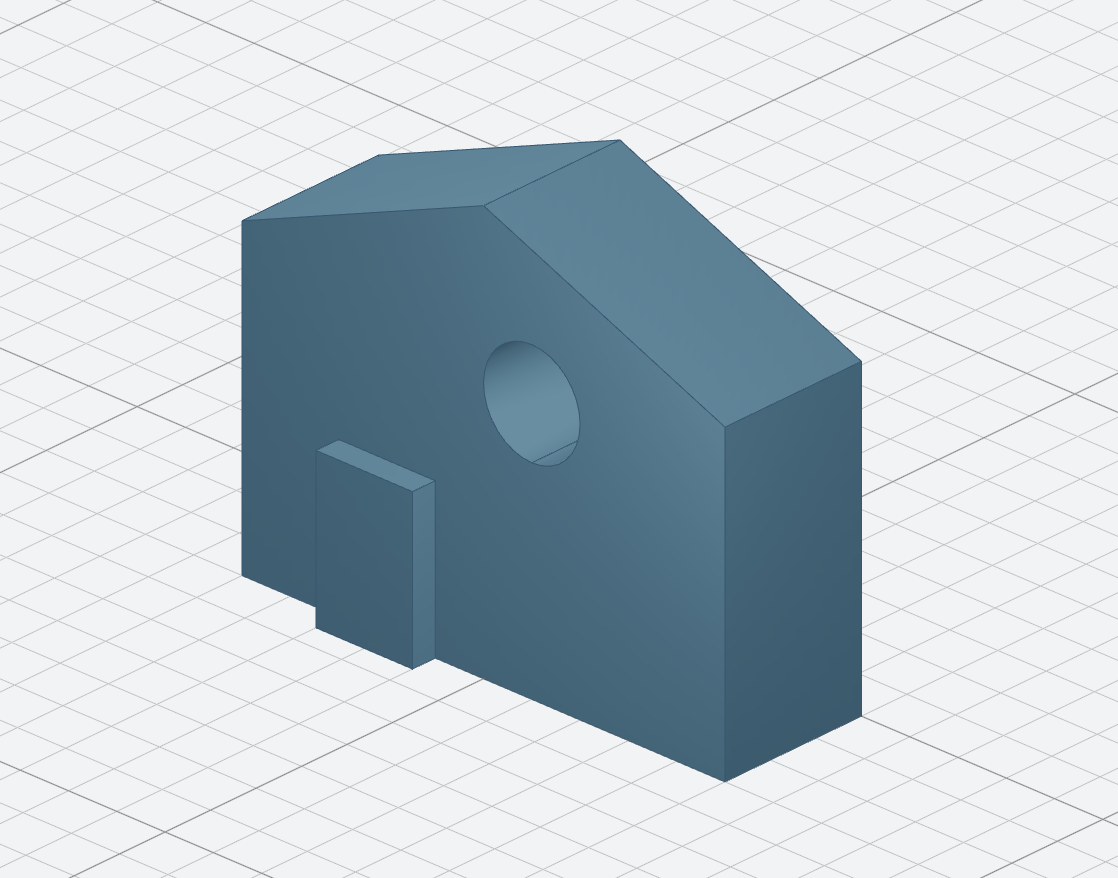

the house

Basic finders usage​

Finding faces​

In order to find faces, we create a face finder object. Let's say we want to find the face of the door

const main = () => {
  let house = draw();
  //...

  return {
    shape: house,
    highlightFace: (f) => f.inPlane("XZ", 35),
  };
};

This was fairly easy, the door is the face parallel to the plane XZ, at the coordinate 35.

There are many different types of filters like inPlane that allow you to specify precisely which face you are interested in. For instance you can look for faces that:

  • have a certain type of surface f.ofSurfaceType("CYLINDRE") will return the inside of the window.
  • contain a certain point f.containsPoint([0, -15, 80]) will return both sides of the roof

and other methods you can find in the API documentation

Finding edges​

To find edges, it works in the same way, you just work with an EdgeFinder instead of a face finder and use the methods that are documented here.

For instance, to find the top of the roof

  let house = draw()
  //...

  const findRooftop = new EdgeFinder()

  return {
    shape: house,
    highlightEdge: e => e.containsPoint([0, -15, 80])
  };
};

Combinating filters​

By default you can chain different filter conditions. Only the shapes that follow all the conditions will be found. For instance, to find the window of the back of the house:

  let house = draw()
  //...

  return {
    shape: house,
    highlightEdge: e => e.ofCurveType("CIRCLE").inPlane("XZ")
  };
};

If you only use one of the filters you will see more edges highlighted.

Combinating with an either condition​

In some cases you might want to combine elements with an OR condition, to find faces that fit either one condition or the other. For instance if we want to find both side faces:

(f) => f.either([(f) => f.inPlane("YZ", 50), (f) => f.inPlane("YZ", -50)]);

Negating a condition​

You might also want to specify the inverse of a condition, that is what not is for. For instance, we can select the front window by just adding a not to the finder we created earlier

const frontWindow = (e) => e.ofCurveType("CIRCLE").not((f) => f.inPlane("XZ"));

Note that it works because there are only two edges that are circles in the house.

Finding faces and edges​

We have created finders so far and used them to highlight faces and edges

  • but what are they really useful for.

This will be mostly clear in the next chapter with modifications that can make a lot of use of finders.

You can also find a specific face. For instance, we might want to have only the front face of the house. For this you will need to use the FaceFinder and EdgeFinder objects directly (instead of within a function that already declared it).

const { draw, drawCircle, drawRoundedRectangle, FaceFinder } = replicad;
const main = () => {
  let house = draw()
    .hLine(50)
    .vLine(60)
    .line(-50, 20)
    .closeWithMirror()
    .sketchOnPlane("XZ")
    .extrude(30);

  const window = drawCircle(10)
    .sketchOnPlane("XZ")
    .extrude(30)
    .translate([10, 0, 50]);

  const door = drawRoundedRectangle(20, 30)
    .sketchOnPlane("XZ")
    .extrude(30)
    .translate([-20, -5, 15]);

  house = house.cut(window).fuse(door);

  return new FaceFinder().inPlane("XZ", 30).find(house);
};
